Roll off Pull Hook & Plate Style B
· Pull hook and plate assembled type B.
· Welded in the cavity of roll off containers' front side.
· 1-1/4" thick hook with 3/4" thick plate for heavy load capacity.
· Both top and bottom get welded.
· Accept customization.

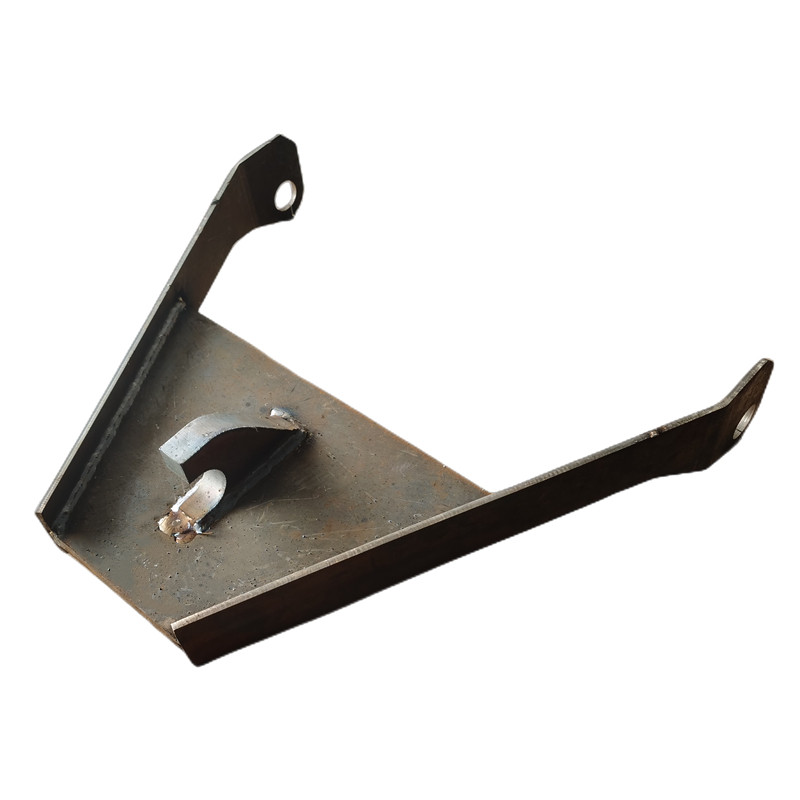

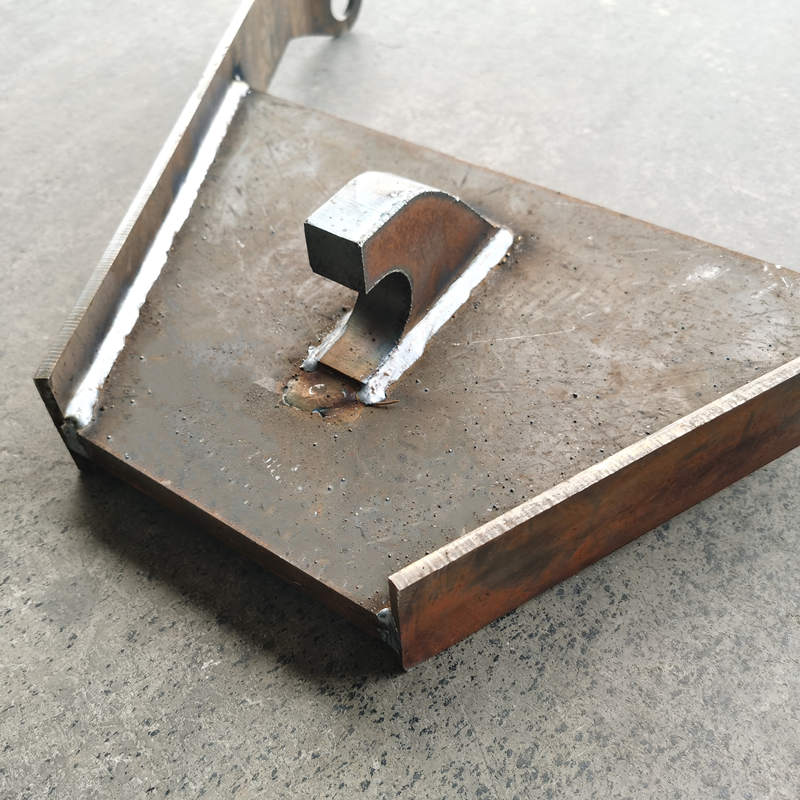

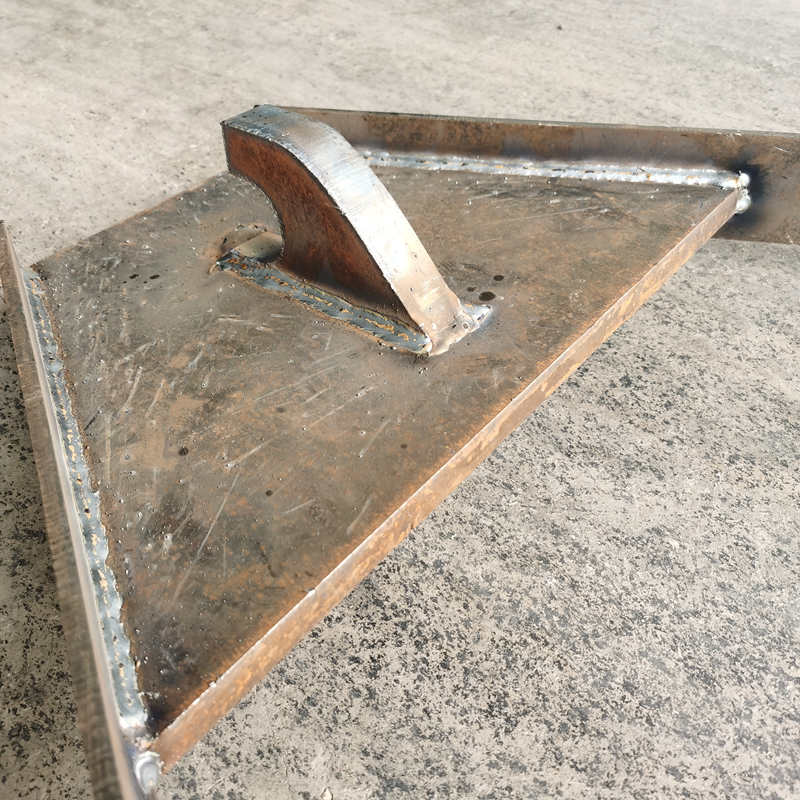

Pull hook&plate kit is joined together by one shaped heavy steel hook welded on one heavy steel plate. The thicknesses of hook and plate are 1.25" and 3/4" respectively, which is very stable for heavy load capacity.

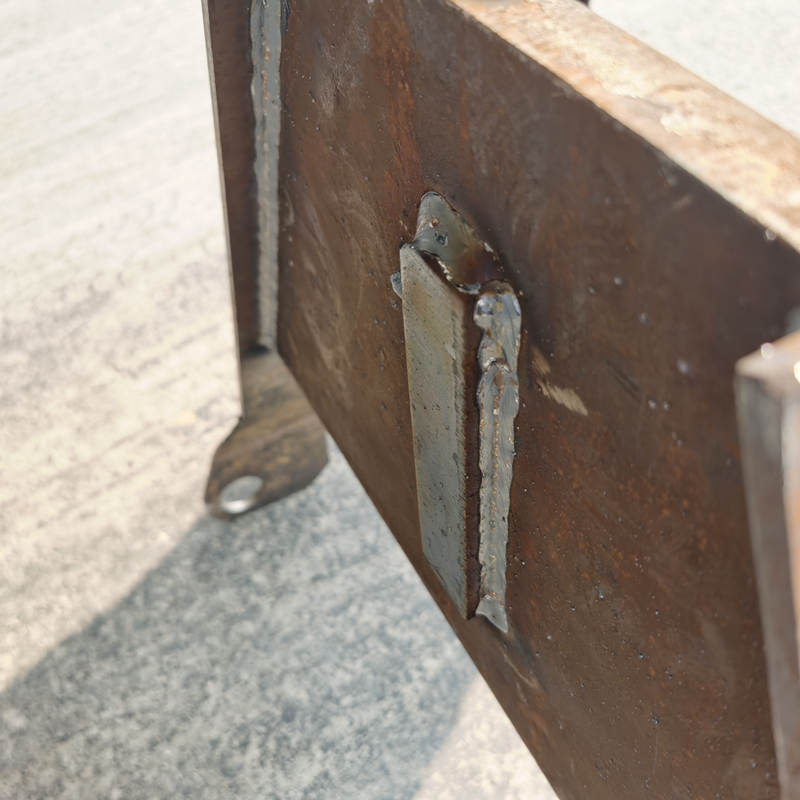

Assembled pull hook&plate kit is utilized to be welded in the cavity of a roll off container's front side for pulling or releasing this container from the truck with steel wire rope.Generally, the operator places a forged ring tied with steel wire rope over the hook and prepares to pull it up on to the truck.
SKU Item Name Specifications Operation
A B C D E F G H
ROCP-PHKIT-B Pull Hook and Plate Kit Style B 27" 23.4" 5/16" 1-1/4" 1" 2-7/8" 3/4" 1-5/8"
